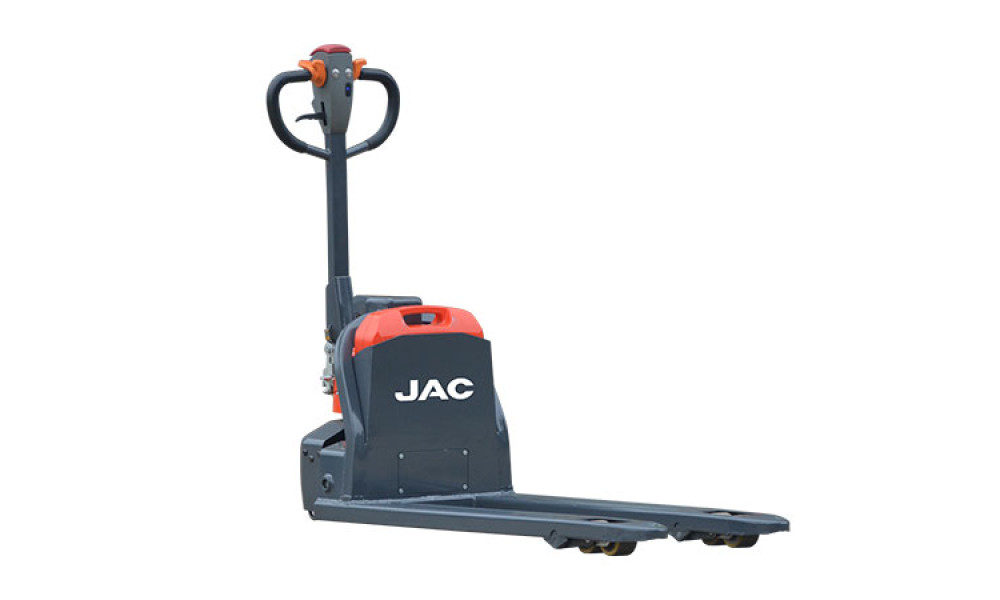

JAC CBD15Li 1.5/1.8/2.0T Lithium Battery Pallet Truck in Lagos, Onitsha, Port Harcourt-Mamtus Nigeria

Details

Product Description

With small turning radius and well-designed structure, the pallet truck is suitable for use in limited space, providing operations with low noise and high efficiency.
The flexible design ensures light weight without sacrificing any stability. Users can easily maintain and repair due to the open structure.
Battery replacement is fast so that the operation wouldn't be interrupted by using optional battery.
The collision avoidance design and electromagnetic brake provide considerable protection.
The operating handle enables excellent lifting performance to save the effort and make the operation easy.

Technical Specification

Manufacturer	Unit	JAC
Model		CBD15Li				CBD18Li				CBD20Li
Power type		Electric
Operation		Pedestrian
Rated traction weight	kg	1500				1800				2000
Load centre	mm	600				600				600
Axle centre to fork face	mm	944				944				944
Wheel base	mm	1243				1243				1243
Service weight with battery	kg	142				142				146
Wheels type		PU
Driving wheel size	Φ×w(mm)	Φ210×70				Φ210×70				Φ210×70
Bearing wheel size	Φ×w(mm)	Φ80×60				Φ80×60				Φ80×60
Numbers of front/rear wheels (x = driving wheel)		1x/4				1x/4				1x/4
Tread width	mm	400/535				400/535				400/535
Lift	mm	200				200				200
Overall height (with handle)	mm	740/1160				740/1160				740/1160
Lowered length	mm	85				85				85
Overall length	mm	1603				1603				1603
Length to fork face	mm	453				453				453
Overall width	mm	550/685				550/685				550/685
Fork dimensions	s/e/l (mm)	50/150/1150				50/150/1150				50/150/1150
Width of forks	mm	550/685				550/685				550/685
Min. ground clearance	mm	35				35				35
Aisle width with pallet 1000 x 1200 across forks	mm	1804				1804				1804
Aisle width with pallet 800 x 1200 along forks	mm	1854				1854				1854
Min. turning radius	mm	1398				1398				1398
Travel speed, laden/unladen	km/h	4.2/4.5				4.2/4.5				4.2/4.5
Maximum climbing ability, with/without load	%	5/10				5/10				5/10
Service brake		Electromagnetic braking
Drive motor, 60 minute rating	kW	0.75				0.75				0.75
Lift motor rating at S3 15%	kW	0.8				0.8				0.8
Battery voltage/rated capacity	V/Ah	24/20	24/30	24/40	24/60	24/20	24/30	24/40	24/60	48/20	48/30
Battery weight (± 5%)	kg	6	7.8	10.2	13.2	6	7.8	10.2	13.2	10.2	13.2
Type of drive control		DC power
Noise level at operator's ear	dB(A)	≤70
Steering type		Mechanical steering
