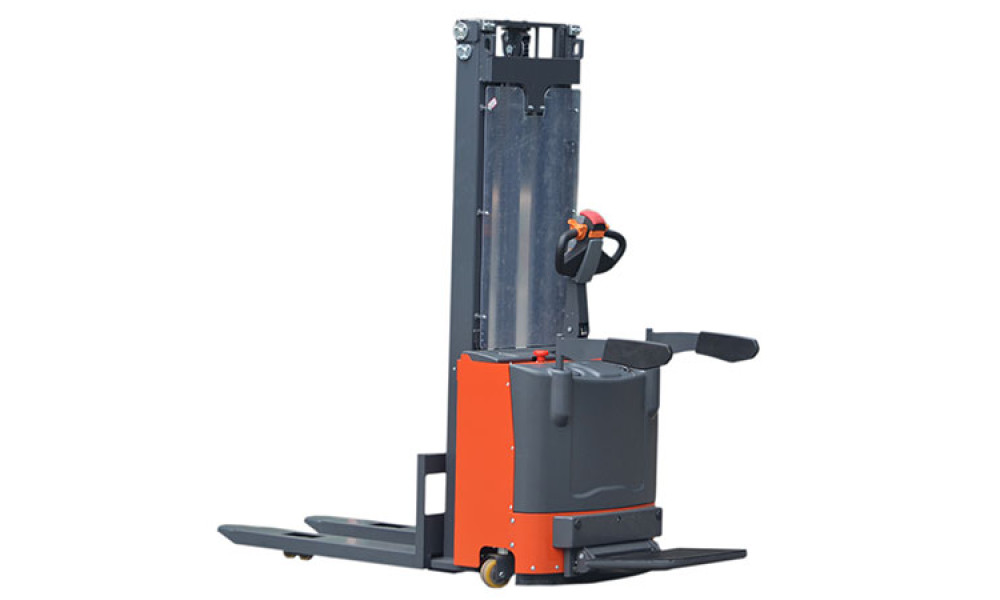

JAC CDD15E 1.5T Stand-On Electric Stacker in Lagos, Onitsha, Port Harcourt-Mamtus Nigeria.

Details

Product Description

The PM control system features small size, light weight, low energy loss and high efficiency to empower your operation.
The built-in charger can quickly make energy supplementation without the risk of running out.
The mechanical steering system features cost-saving.
Multi-function handle with up and down button on both sides can make the control easy and fast.
It enables high frequency and high capacity lifting while maintaining a low cost.
The battery supports easy replacement and doesn’t need extra maintenance.
It is small in size to drive through narrow aisles and is suitable for operating in warehouse with limited space.

Technical Specification

Manufacturer	Unit	JAC
Model		CDD15E
Power unit		Electric
Operation		Stand-on
Rated traction weight	kg	1500
Load center distance	mm	600
Axle centre to fork face	mm	695
Wheelbase	mm	1148
Load capacity on Max. height	kg	1500	1500	1350	1100	700
Service Weight	kg	620	690	720	730	740
Tires		PU
Driving wheel size/number	Φ×w(mm)	Φ210×70
Front wheel size/number	Φ×w(mm)	Φ80×70
Balance wheel size/number	Φ×w(mm)	Φ115×55
Wheels number, front/rear (x = drive wheel)		1, 4/2
Tread width (drive end)	mm	646
Tread width (load end)	mm	390/515
Lowered mast height	mm	2077	1877	2127	2327	2527
Free lifting height	mm	0	0	0	0	0
Lifting height	mm	1600	2600	3200	3600	4000
Max. lifting height	mm	2077	3137	3687	4087	4487
Height of handle in the driving position, min./max.	mm	1040/1415
Lowered fork height	mm	86
Overall length	mm	1890
Length to fork face	mm	740
Overall width	mm	808
Fork dimensions	s/e/l (mm)	60/180/1150
Width of forks	mm	570/695
Min. ground clearance	mm	26
Aisle width with pallet 1000 x 1200 across forks	mm	2110
Aisle width with pallet 800 x 1200 along forks	mm	2160
Min. turning radius	mm	1455
Travel speed, laden/unladen	km/h	4.2/4.5
Lifting speed, with/without load	mm/s	90/130
Lowering speed, with/without load	mm/s	105/100
Maximum climbing ability, with/without load	%	3/6
Service brake		Electromagnetic braking
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	2.2
Battery according to DIN 43531/35/36 A, B, C, no		no
Battery voltage/rated capacity	V/Ah	2×12/120
Battery weight (± 5%)	kg	2×35
Type of drive control		DC power
Noise level at operator's ear	dB(A)	≤70
