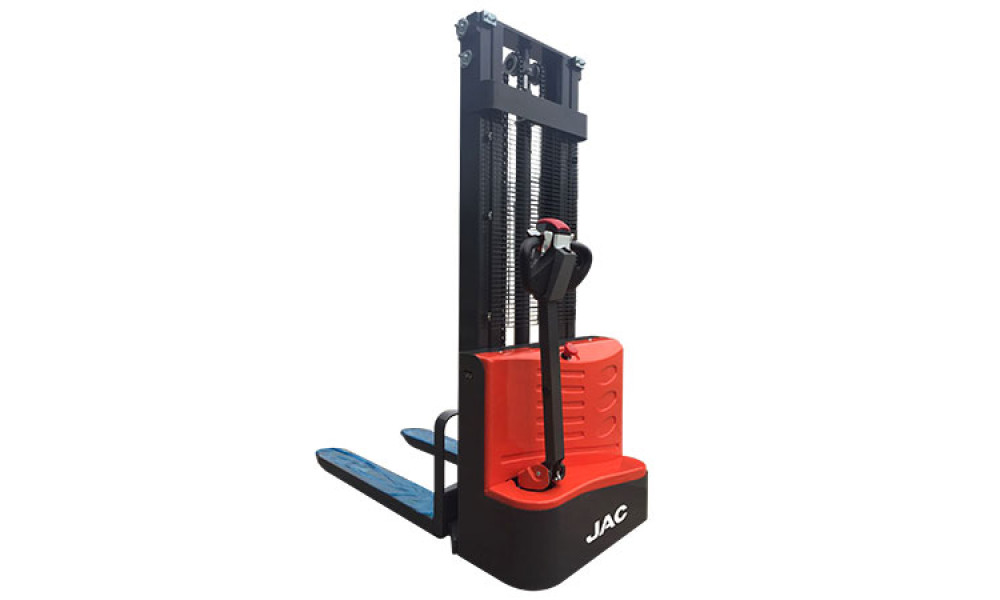

JAC CDD15 1.5T Walk Behind Electric Stacker in Lagos, Onitsha, Port Harcourt-Mamtus Nigeria.

Details

Product Description

Flexible side stance operator platform,wide-view mast and tighter turning radius improve the ability to fit into tighter spaces for greater narrow aisle capability.

Ergonomically lengthened control handle provides operator with comfort and precise load control.

The walkie pallet jack is equipped with large-power high-performance lift pump, delivering efficient and stable lifting and lowering functionalities.

Lift control buttons on both sides of the handle allow easy access from either side of the riding pallet jack platform.

Crawl speed button on the operating handle provides precise controllability and superior maneuverability at a slower speed.

The handle features a return spring which can automatically restore the handle to its vertical position, enhancing durability.

Battery discharge LED indicator clearly displays the state of charge in four colors—green, blue, orange and red.

Key switch and battery discharge indicator are integrated in the handle for ease of operations.

External charger provides better heat dissipation performance and eliminates the risk of battery damage caused by stacker bump and vibration.

Original Germany waterproof microswitch offers excellent protection against dust, humidity and low temperature, ideal for harsh working environments.

Technical Specification

Manufacturer	Unit	JAC
Model		CDD15
Power type		Electric
Operation		Pedestrian
Rated traction weight	kg	1500
Load center distance	mm	600
Axle centre to fork face	mm	720
Wheel base	mm	1167
Service weight (with battery)	kg	415	460	477	495	503	515	525
Tires		PU
Driving wheel size	Φ×w(mm)	Φ210×70
Bearing wheel size	Φ×w(mm)	Φ80×70
Balance wheel size	Φ×w(mm)	Φ115×55
Number of front/rear wheel (x = drive wheel)		1x+1/4
Tread width	mm	410/535
The max. lifting height	mm	1600	2000	2500	3000	3300	3500	4000
Load capacity at max. lifting height	kg	1500	1300	1100	900	800	700	300
Extended mast height	mm	2015	2452	2952	3452	3752	3952	4452
Lowered mast height	mm	2015	1495	1745	1995	2145	2245	2495
Free lifting height	mm	1600	0	0	0	0	0	0
Height of handle in the driving position min./max.	mm	700/1225
Lowered fork height	mm	86
Overall length	mm	1740
Length to fork face	mm	590
Overall width	mm	795
Fork dimensions	s/e/l (mm)	60/160/1150
Width of forks	mm	570/695
Min. ground clearance	mm	26
Aisle width with pallet 1000 x 1200 across forks	mm	2074
Aisle width with pallet 800 x 1200 along forks	mm	2040
Min. turning radius	mm	1342
Travel speed, laden/unladen	km/h	4.0/4.2
Lifting speed, with/without load	mm/s	92/136
Lowering speed, with/without load	mm/s	112/98
Maximum climbing ability, with/without load	%	6/8
Service brake		Electromagnetic braking
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	2.2
Battery according to DIN 43531/35/36 A, B , C, no		no
Battery voltage	V/Ah	2×12/100
Battery weight (± 5%)	kg	2×27
Type of drive control		DC power
Noise level at operator's ear	dB(A)	69
Steering type		Mechanical steering
