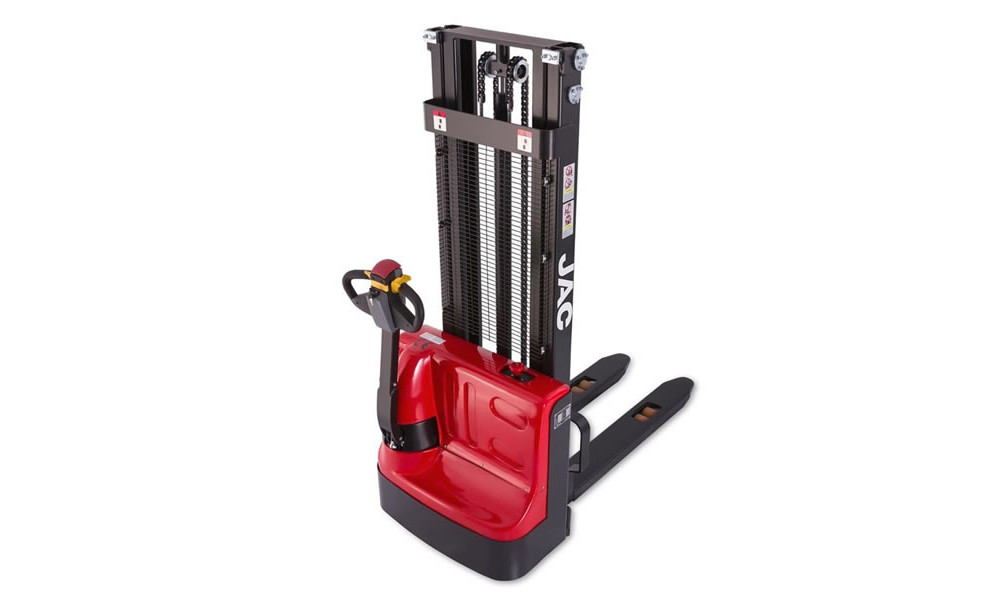

JAC 8427209000CDD10 1T Electric stacker in Lagos, Onitsha, Port Harcourt-Mamtus Nigeria.

Details

Product Description

Flexible side stance operator platform, wide-view mast and tighter turning radius improve the ability to fit into tighter spaces for greater narrow aisle capability.
Ergonomically lengthened control handle provides operator with comfort and precise load control.
The walkie pallet jack is equipped with large-power high-performance lift pump, delivering efficient and stable lifting and lowering functionalities
Lift control buttons on both sides of the handle allow easy access from either side of the riding pallet jack platform.
Crawl speed button on the operating handle provides precise controllability and superior maneuverability at a slower speed.
The handle features a return spring which can automatically restore the handle to its vertical position, enhancing durability.

Technical Specification

Characteristics	Manufacturer	Unit	JAC
	Model		CDD10
	Power unit		electric
	Operation		pedestrian
	Rated traction weight	kg	1000
	Load center distance	mm	600
Weights	Service weight	kg	384	437	451	465	510	540
Wheels	Wheels type		PU
Dimensions	The max. lifting height	mm	1600	2000	2500	3000	3500	4000
	Load capacity on Max. height	kg	1000	900	800	700	500	300
	Extended mast height	mm	2014	2451	2924	3424	3924	4147
	Lowered mast height	mm	2014	1494	1744	1994	2245	2495
	Lowered fork height	mm	86
	Overall length	mm	1755
	Overall width	mm	795
	Overall fork width	mm	570/695
	Fork length	mm	1150
	Single fork width	mm	160
	Aisle width for pallets 1000×1200 cross ways	mm	2074
	Aisle width for pallets 800×1200 length ways	mm	2040
	Turning radius	mm	1336
	Fixed leg length	mm	928
	Single fixed leg width	mm	124
	Outside width between fixed legs	mm	534/659
Performance	Travel speed, laden/unladen	km/h	4.0/4.2
	Lifting speed, with/without load	mm/s	92/136
	Service brake		electromagnetic braking
Drive	Drive motor, 60 minute rating	kW	0.75
	Lift motor rating at S3 15%	kW	2.2
	Battery according to DIN 43531/35/36 A, B, C, no		no
	Battery voltage	V/Ah	2×12V/100AH
Others	Type of drive control		DC power
	Noise level at operator's ear	dB(A)	69
	Steering type		Mechanical steering
