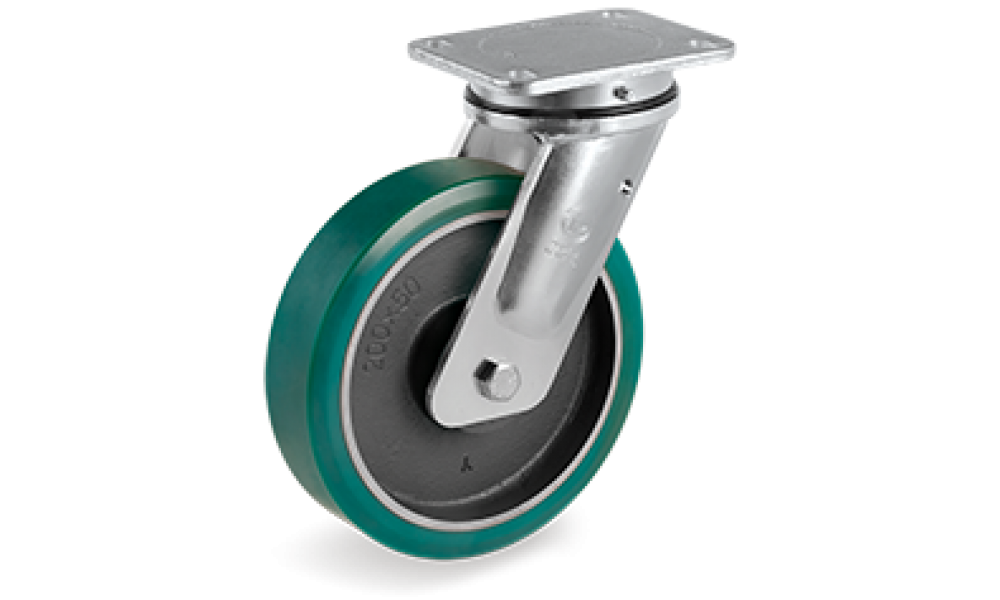

200mm TR-Roll Polyurethane Wheels, Cast Iron centre, swivel top plate bracket EE MHD 628316

Be the first to review this product

Quick Overview

"TR-Roll" polyurethane wheels, cast iron centre,


swivel top plate bracket type EE MHD (heavy duty). Diam. 200x50 mm.

Availability: Ship by Manufacturer (delivery time 15 - 45 days)

X

Estimate Shipping and Tax

  • Details

    Wheel description
    TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of cast iron.
    Ball bearing bore
    The housing is obtained by moulding and turning and contains ball bearings series Z.
    Axle
    Axle composed of ground steel bush with bolt according to UNI EN 24017 and nut according to UNI EN 24032.
    Swivel top plate bracket EE MHD, rear brake
    Swivel top plate bracket type EE HD, with a plate made of forged steel with integrated pin, a fork with two drawn sides electrowelded to the flange, swivel actions made of an axial ball bearing an a taper roller bearing, lubricator and nut anti-loosening system. Rear adjustable brake: adjustment of the brake setting alters product braking efficiency



    Wheel diametre Wheel width Overall height Top-plate outer dimensions Hole spacing Hole width Offset Load capacity daN Hub with ball bearing

    Order OnLine 200 50 252 135x110 105x80 11 70 800 628316

    Additional Information

    Manufacturer Tellure Rota
    Condition New
    Warranty 1 year
    Tax Class VAT 7.5%
