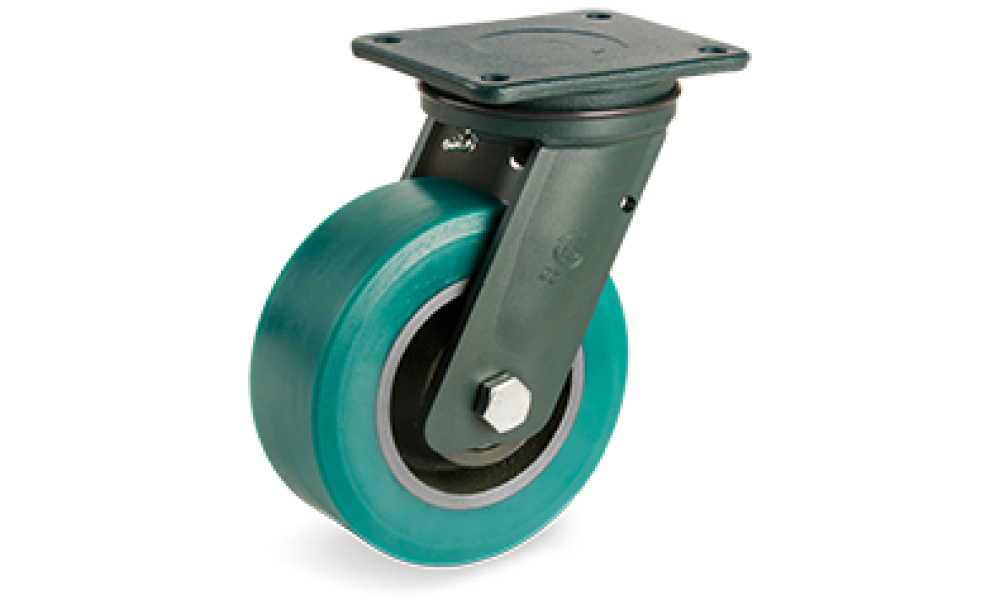

300mm TR-Roll Polyurethane Wheels, cast Iron centre, swivel top plate bracket EE HD 628718

Be the first to review this product

Quick Overview

Description : "TR-Roll" polyurethane wheels, cast iron centre,
swivel top plate bracket type EE HD (extra-heavy duty). Diam. 300x80 mm.
Load Capacity: 1400 daN

Availability: Ship by Manufacturer (delivery time 15 - 45 days)

X

Estimate Shipping and Tax

  • Details

    Wheel description
    TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of cast iron.
    Ball bearing bore
    The housing is obtained by moulding and turning and contains ball bearings series Z.
    Axle
    Axle composed of ground steel bush with bolt according to UNI EN 24017 and nut according to UNI EN 24032.
    Swivel top plate bracket EE HD
    Swivel top plate bracket type EE HD, with a plate made of forged steel with integrated pin, a fork with two drawn sides electrowelded to the flange, swivel actions made of an axial ball bearing an a taper roller bearing, lubricator and nut anti-loosening system.

    Wheel diametre Wheel width Overall height Top-plate outer dimensions Hole spacing Hole width Offset Load capacity daN Hub with ball bearing
    300 80 360 175x140 140x105 14,5 74 1400 628718

    Additional Information

    Manufacturer Tellure Rota
    Condition New
    Warranty 1 year
    Tax Class VAT 7.5%
