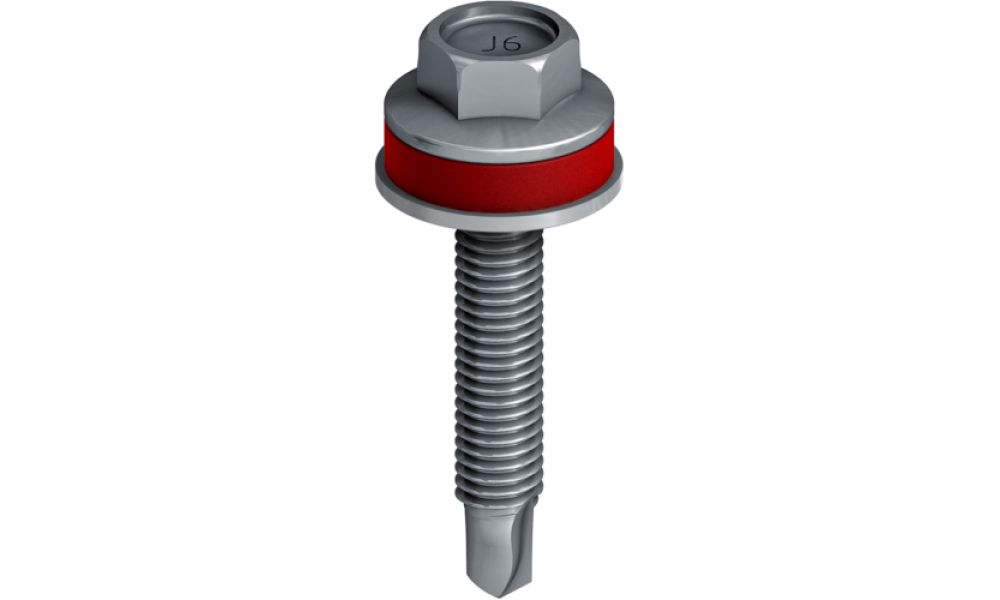

Self-drilling screw JT6-2/5-5.0 VARIO

Be the first to review this product

Quick Overview


  • To form floating and fixed points on substructures of rear-ventilated facades

  • Fastening pre-drilled stainless steel or aluminium wall brackets to aluminium support profiles.

Availability: In stock

X

Estimate Shipping and Tax

  • Details

    Properties

    • A4 stainless steel with hardened drill point
    • One screw for all part combinations
    • Sliding washer E14, Ø 14 mm
    • Buffer zone between the screw head and sliding disk prevents excessive clamp load of the joint
    • Pre-assembled captive sliding washer
    • Consistently low contact pressure prevents stick-slip phenomenon
    • No stripping / destruction of the thread in component II resulting in high tensile loading capacity
    • High tensile and transverse load transmission in component II due to fine pitch thread
    • General building authorities test certificate (abP) as proof of usability according to DIN 18516-1 (also available as informal English translation)
    • Case hardened drill point of the JT6 version for fastening in steel support profiles (not part of the abP)
    • Wall brackets made of stainless steel and aluminium are part of the abP
    • Buffer zone serves as visual set control
    • Same assembly concept for floating and fixed points.



    Technical specifications

    • Diameter: 5.0 mm
    • Drilling capacity: 3.00 mm
    • Drive: Hexagon A/F8
    • Montagedrehzahl: 1500 1/min
    • Gleitscheibe E14, Ø 14 mm.
