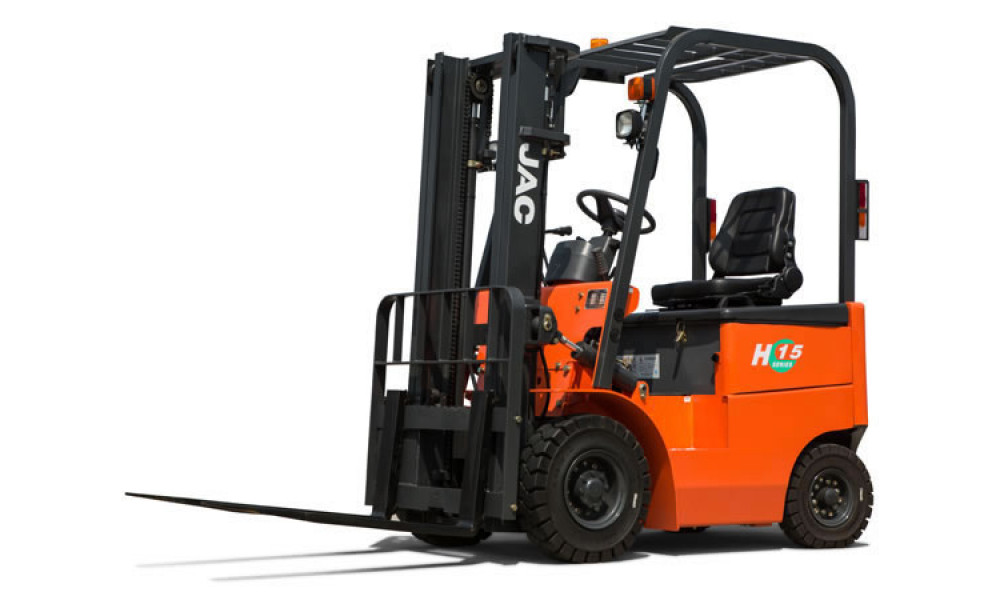

Jac G1-1.8T8427209000 Electric Forklift 1-1.8T Four Wheel Forklift, H Series in Lagos, Onitsha, Port Harcourt-Mamtus Nigeria.

Details

Product Description

1. The electric forklift of H series employs asymmetric drive axle, to leave enough space for the installation of the travel motor. So, the motor replacement and maintenance can be completed easily, without troublesome dismantling of the gear box and drive axle. This design has been granted the national patent.

2. The steering axle of the 1-1.8T four wheel forklift offers big turning angle to reduce the turning radius and enhance the trafficability of the electric forklift. The patented technology makes this product quite popular.

3. Thanks to the LCD instrument panel with good resistance to water and vibration from, the important information can be displayed on the screen completely, enabling the user to understand the working conditions of the material handling equipment timely and precisely.

4. Iron cover for the balance weight of the electric forklift has high strength and good resistance to crush.

5. Making full use of space, we maximize the size of the fins to achieve optimal heat dissipation effect.

Technical Specification

Model		Unit	CPD10H	CPD15H	CPD18H
Load Capacity		Kg	1000	1500	1800
Load Center		mm	500	500	500
Mast Lifting height		mm	3000	3000	3000
Mast Free Lift		mm	125	125	125
Mast Lifting Speed (With Load)		mm/s	300	300	300
Mast Tilting Angle (Front/Rear )			6°/ 12°	6°/ 12°	6°/ 12°
Driving Speed		km/h	14	14	14
Turning Radius		mm	1800	1855	1900
Ground Clearance		mm	110	110	110
External Dimension	Length to face of forks	mm	1992	2027	2102
	Overall width	mm	1070	1070	1070
	Height of overhead guard (cabin)	mm	2080	2080	2080
	Height of mast, extended	mm	4030	4030	4030
Wheelbase		mm	1250	1250	1250
Tread	Front	mm	890	890	890
Tread	Rear	mm	920	1920	920
Overhang (front)		mm	410	410	410
Fork		mm	1070	1070	1070
Service Weight		kg	2840	2960	3100
