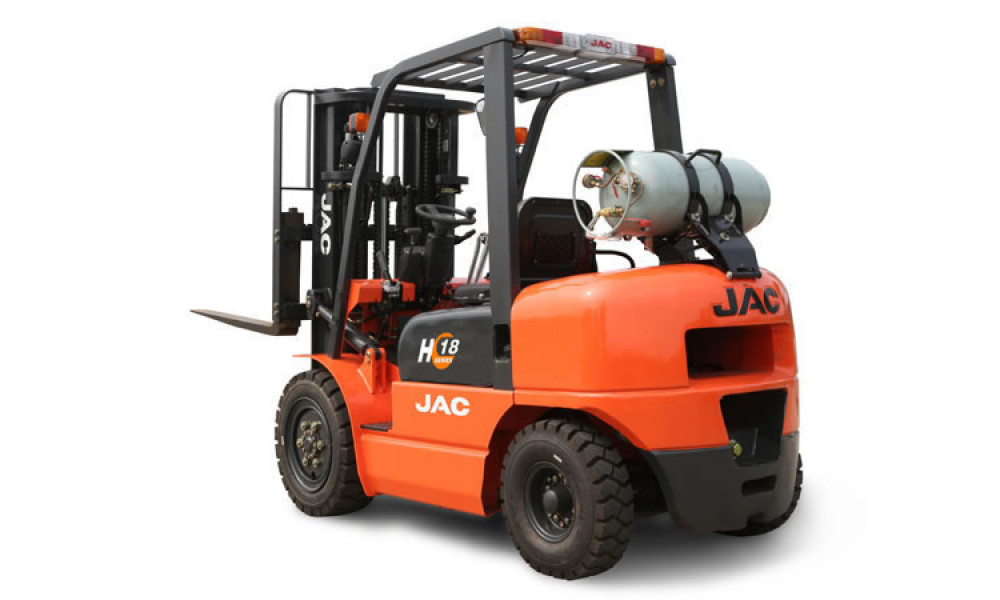

Jac 1-1.8T-8427209000 Gasoline LPG Forklift 1-1.8T Forklift Truck, H Series

Details

Production Description

The Gasoline LPG Forklift of 1-1.8 ton H series is constructed based on ergonomics. The seat location and the steering wheel angle can be adjusted freely to obtain large working space. The special design creates comfortable working environment and minimizes the fatigue of the operator.
The combined type taillight for the warehouse equipment is installed at the top of the overhead guard. Apart from the nice appearance, the eye-catching design makes the forklift truck quite safe for use at night. The appearance design of the Gasoline LPG Forklift is granted national patent.
The cyclone filter, as well as the air inlet system installed at high level, effectively extends the lifespan of the engine.
Hydraulic load-free induction steering gear and transverse oil cylinder steering system enable labour-saving operation. The steering axle is capable of affording 300,000 times fatigue test.
The frame and the steering axle of the material handling equipment are engineered with shock absorber to reduce the impact and maximize the comfort during operation.
Multiple engines for selection.

Technical Specification

Model		Unit	CPQD10H	CPQD15H	CPQD18H
Load Capacity		Kg	1000	1500	1800
Load Center		mm	500	500	500
Mast Lifting height		mm	3000	3000	3000
Mast Free Lift		mm	155	155	155
Mast Lifting Speed (With Load)		mm/s	550	550	550
Mast Tilting Angle (Front/Rear )			6°/ 12°	6°/ 12°	6°/ 12°
Driving Speed		km/h	14	14	14
Turning Radius		mm	1880	1955	1985
Ground Clearance		mm	115	115	115
External Dimension	Length to face of forks	mm	2171	2231	2274
	Overall width	mm	1080	1080	1080
	Height of overhead guard (cabin)	mm	2060	2060	2060
	Height of mast, extended	mm	3930	3930	3930
Wheelbase		mm	1400	1400	1400
Tread	Front	mm	891	891	891
Tread	Rear	mm	920	920	920
Overhang (front)		mm	407	407	407
Fork		mm	1070	1070	1070
Service Weight		kg	2430	2790	2890
