Nedo 50M Laser Range Finder messFix8

Details

Nedo laser mEssfix⁸⁰

General Information

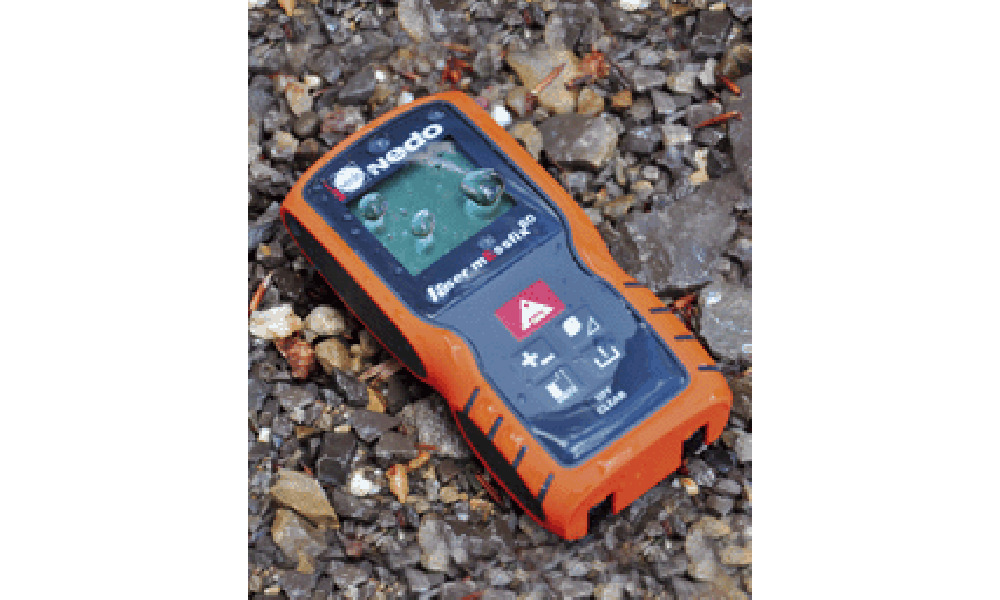

The laser mEssfix⁸⁰ is a small, handy and extremely robust laser distance meter for real professionals. It has a measuring range of 0.05 m to 80 m and an accuracy of ± 1.5 mm. Measurements can be taken from the device’s front edge, back edge or multi-functional end piece with automatic position detection.

Numerous measuring functions help to save time during surveying operations. The last ten measurements can be stored and recalled.

General Information

laser mEssfix⁸⁰

The Laser Distance Meter for Professionals

laser mEssfix⁸⁰ Ref.-No. 705 565

laser mEssfix⁸⁰

Features:

Measurements can be made from the device’s front
edge, back edge or end piece
Multi-functional end piece with automatic position
detection
Clear, back-lit 3-line display
Area and volume calculation
2 Pythagoras functions
Single or continuous measuring
Calculator function (+/-)
Memory for the last ten measurements
Small, handy and robust
IP 54 splashwater protection
Information on range and accuracy comply with
ISO 16331-1

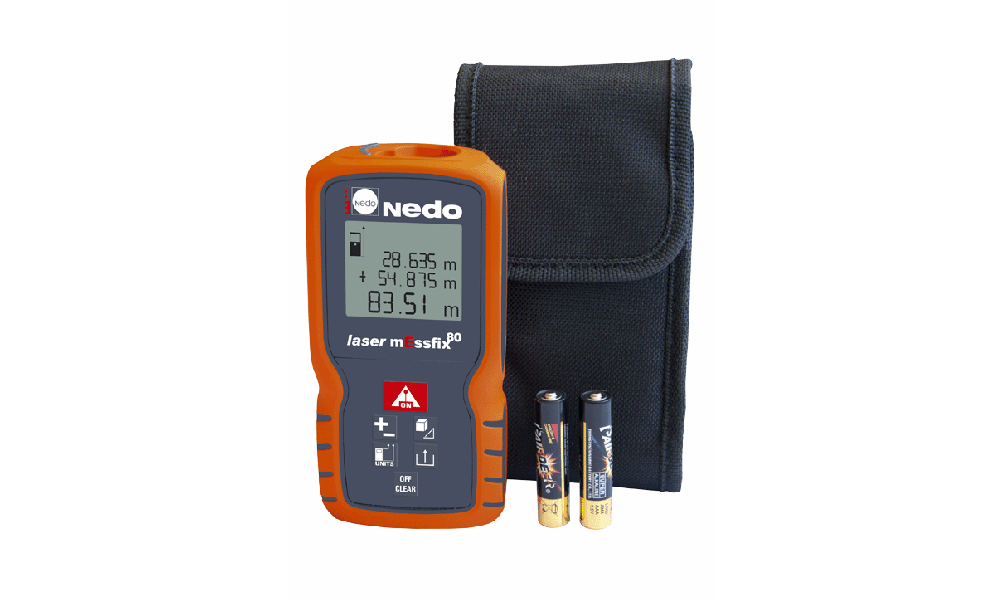

Scope of delivery:

Nedo laser mEssfix⁸⁰
Protective case
Batteries

Technical data:

Typ. measuring accuracy.	± 1.5 mm
Measuring range	0.05 m - 80 m
Laser	Laser class 2, 635 nm
Automatic switch-off	after approx. 3 minutes
Power supply	2 x 1.5 V type AAA batteries
Measurements per battery set	approx. 3000
Dimensions	117 mm x 57 mm x 32 mm
Weight	137 g

Order information:

Ref.-No.
705 565	Nedo laser mEssfix⁸⁰

Measures distances up to 80 m
as quick as a flash and with
millimetre accuracy

Calculates areas and volumes
in next to no time

Determines inaccessible heights using
the Pythagoras function with two or
three measurements

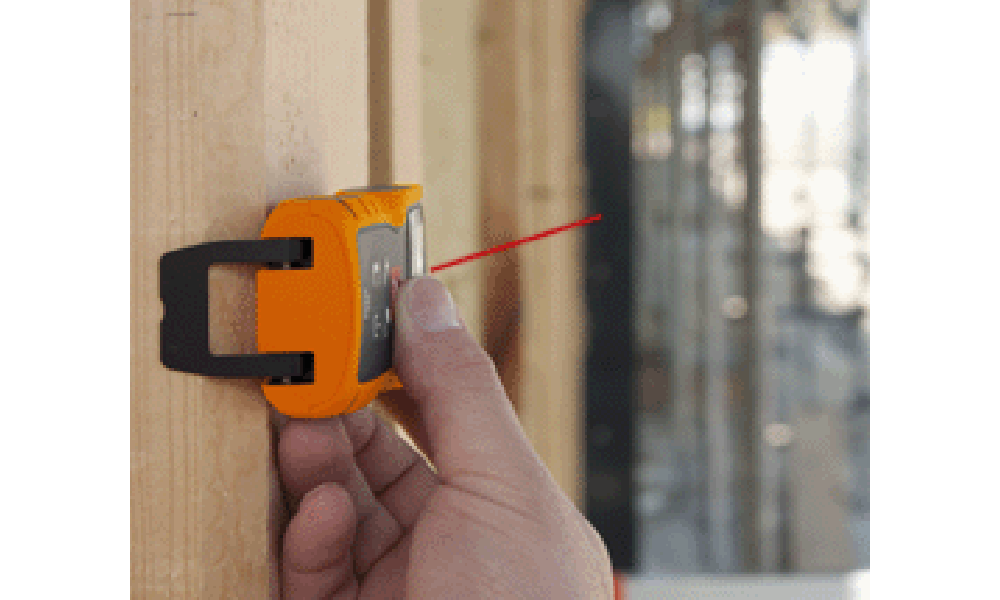

The multi-functional end piece allows
rapid and simple measuring of
diagonals or taking measurements
out of corners. The laser mEssfix⁸⁰
automatically detects the position of
the multifunctional end piece and
takes this into consideration when
displaying the measured length, thus
avoiding costly measuring errors.
