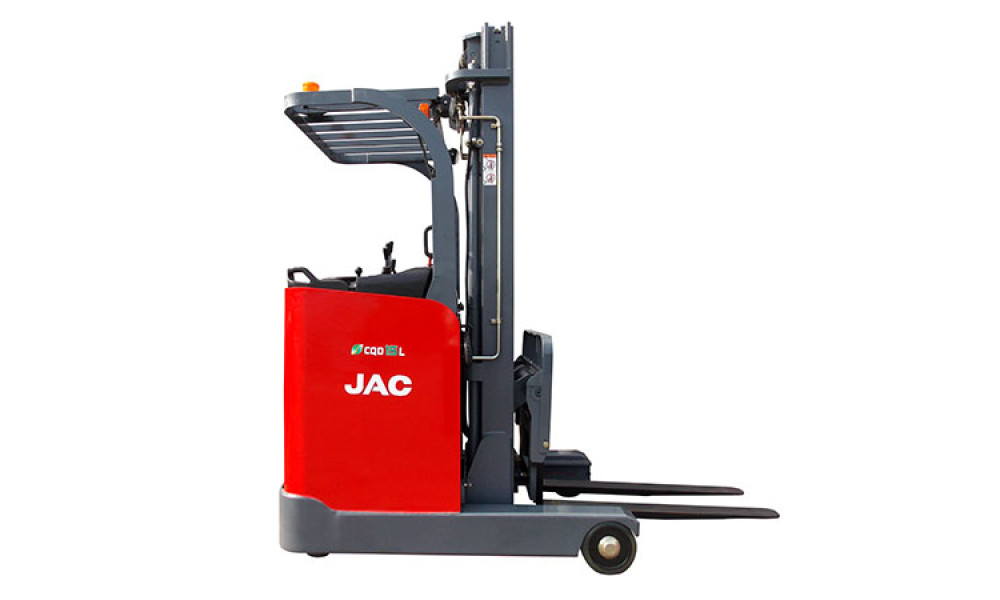

JAC CQD8427209000 Reach truck in Lagos, Onitsha, Port Harcourt-Mamtus Nigeria.

Details

Product Description

The electric reach truck is configured with low voltage protection system to prolong the battery life.
Due to CAN bus technology, the material handling equipment features reduced wiring complexity, increased reliability and is service friendly.
Improved battery plug system enables the battery to be connected or disconnected more easily for charging.
It offers 4-level adjustable driving speed from 3km to 10km.
Due to the EPS (electric power steering) system, the reach truck features easy, flexible and much safer steering operation.
Via the joystick supporting finger-tip control, the warehouse equipment supports adjustment of driving speed, lifting and lowering speed, as well as opening and closing of the stabilizer.
Stabilizers (at certain lifting height), which can work manually or automatically, are available to enhance stability and safety of the electric reach truck when stacking cargo.
The electric reach truck supports automatic power disconnecting under emergency conditions.
Drive wheel and balanced wheel are combined together to ensure stability.
Wide view masts provide operators with clear visibility
Although with compact structure design, the reach truck supports heavy duty operations.

Technical Specification

Model			CQD15
Power type			Battery
Drive type			Stand-on
Load capacity		kg	1500
Weight with battery		kg	2740
Tyre	Tyre quantity		1×+2/2
	Front tyre (PU)	mm	Φ254×114
	Rear tyre (Rubber）	mm	Φ305×145×180
	Balance tyre(PU)	mm	Φ178×73
Tread	Front tread	mm	999
Tread	Rear tread	mm	618
Inner width of fork-arms		mm	771
Length		mm	2450
Width		mm	1114
Height		mm	2285
Reach distance		mm	530
Minimum ground clearance		mm	100
Wheelbase center ground clearance		mm	73
Minimum Aisle Width（Pallet 1100*1100）		mm	2835
Load center distance		mm	500
Front overhang		mm	318
Wheelbase		mm	1335
Minimum turning radius		mm	1632
Maximum travel speed (full load/no load)		km/h	10/10
Maximum lift speed(full load/no load)		mm/s	320/480
Maximum lowering speed(full load/no load)		mm/s	420/400
Reach speed(full load/no load)		mm/s	120/150
Maximum gradeability(full load/no load)		mm/s	10/10
Service brake			Mechanical
Steering type			Hydraulic
Driving motor power		kW	4.5
Lifting motor power		kW	8.6
Battery voltage/capacity		V/Ah	48/400
Battery weight		kg	670
Battery size(L x W x H)		mm	820×405×675
Way of motor control			AC/AC
