Bosch
Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.
π shape filter
Double metal filter
Specification
- DWB64BC51B
- DWB64BC51B stainless steel

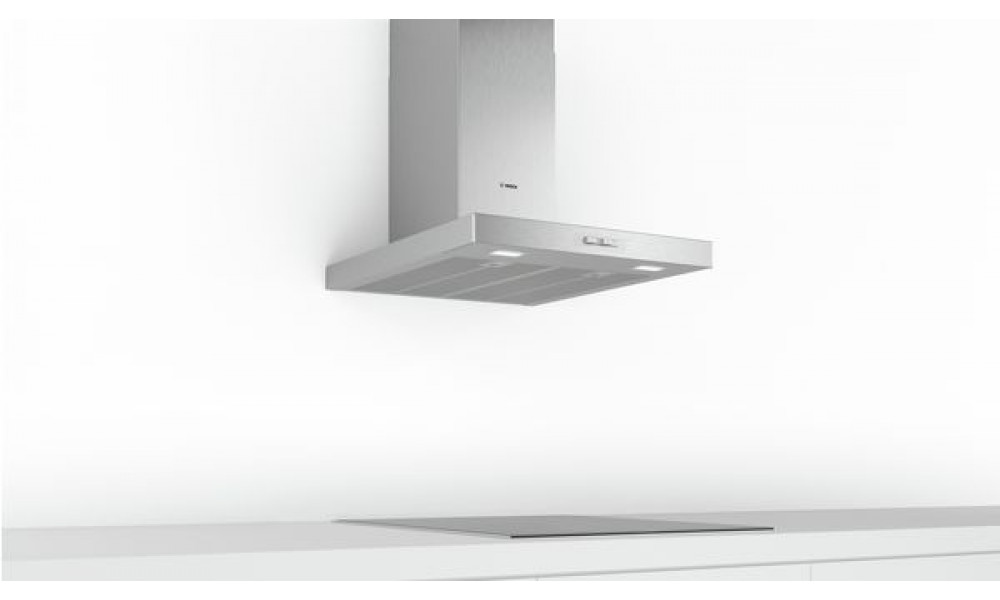

- Chimney hood, 60 cm
- Box common design - stainless steel
- Energy Efficiency Class: D*
- Average Energy Consumption: 53.1 kWh/year*
- Blower Efficiency Class: E*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Noise min./max. Normal Level: 48/63 dB*
Measures
- Chimney hood
- stainless steel
- 600 mm wide
- Suitable for ducted or re-circulated extraction
- Recirc. kit or clean air kit
- Wall mounted hood
- push buttons for extractor speeds and light
- 3 speeds via push buttons
- 3 speeds control
- Twin channel high performance fan motor
- Light Intensity: 99 lux
- Colour Temperature: 3500 K
- Metal grease filter, dishwasher safe
- Ducted extraction rate according to DIN/EN 61591max. 365 m³/h
- Maximum extraction rate exhaust air 365 m³/h according to EN 61591
- Noise level according to EN 60704-3 und EN 60704-2-13 at max. normal use exhaust air: 63 dB(A) re 1 pW (50 dB(A) re 20 µPa sound pressure)
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

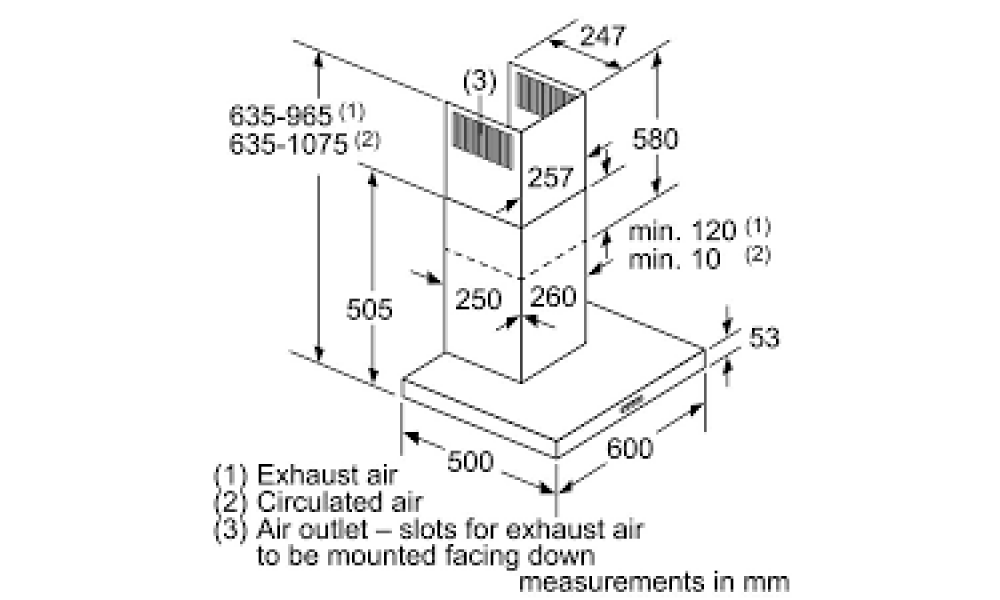

- Dimensions exhaust air (HxWxD): 635-965 x 600 x 500 mm
- Dimensions recirculating (HxWxD): 635-1075 x 600 x 500 mm
- Dimensions recirculating with cleanAir module (HxWxD);
703 x 600 x 500 mm - mounting with outer chimney
833-1163 x 600 x 500 mm - mounting with telescopic chimney - Power rating: 100 W
- Electrical cable lenght 1.3 m
Technical Data
| Type of appliance width (cm) | 60 cm |
|---|---|
| Depth of the product | 500 mm |
| Construction type | Built-in |
| Operating Mode | Convertible |
| Maximum output recirculating air (m3/h) | 196 m³/h |
| Sound pressure max. normal | 50 dB (A) |
| Total annual energy consumption | 53.1 kWh/annum |
| Diameter of air outlet (mm) | 120 / 150 mm |
|---|---|
| Color body | Stainless steel |
| Grease filter material | Washable stainless steel |
| Grease filter type | Multilayer cassette |
| Installation typology | Wall-mounted |
| Material body | Stainless steel |
| Material chimney | Stainless steel |
| Motor location | Integrated motor in hood chimney |
| Number of motors | 1 |
| Operating Mode | Convertible |
| Typology | Chimney |
