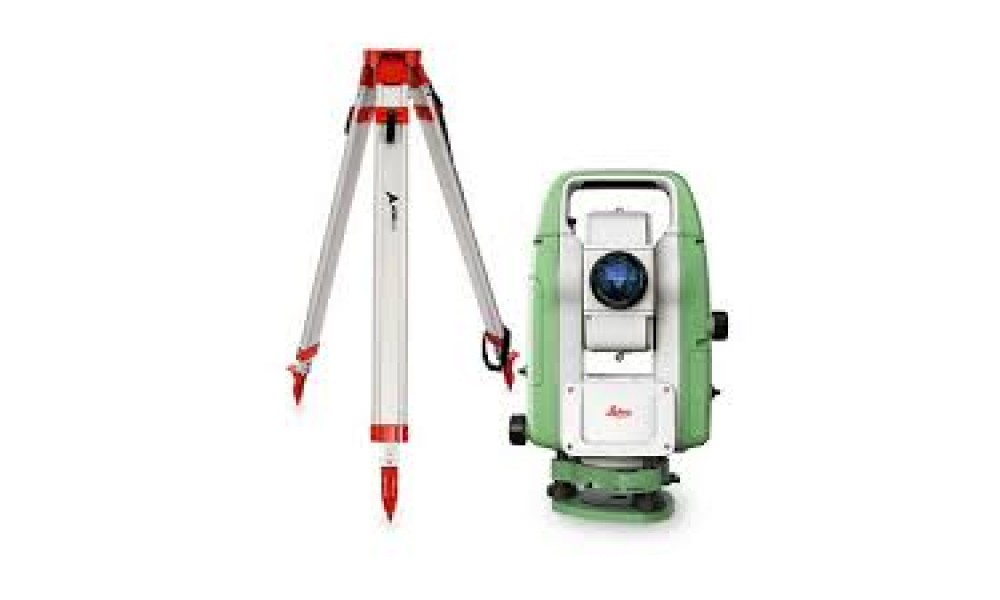

Leica Total Station TS03 5" R500 Basic Package

LEICA FLEXLINE TS03 MANUAL TOTALS
- Work Faster : Measure more points per day with faster measurement and setup procedures (worm controls, side trigger button, screw on both sides, precision EDM and more), thanks to to our comprehensive and user-friendly Leica FlexField software.
- Use it hassle-free : Increase productivity and minimize downtime by relying on instruments that simply work and come with a global service and support network.
- Choose products designed to last : The FlexLine range operates with the same high level of quality even after years of use in harsh conditions (mud, dust, heavy rain, extreme heat and cold).
- Control your investment : Reliability, speed and precision guarantee a lower investment over the life of the product and a higher resale value.
- Save time with AutoHeight : automatically measure, read and adjust the height of the instrument with this revolutionary function in the FlexLine TS07 (optional). Errors are minimized and the setup process is faster.
The high-quality Leica FlexLine TS03 and TS07 manual total stations are based on a proven product concept that has revolutionized the world of measurement and surveying for almost 200 years.
The instruments are equipped with a comprehensive software package of applications - Leica FlexField software, which enables most surveying and stakeout tasks to be performed easily and efficiently. The new FlexLine manual total stations operate reliably and deliver precise results even in harsh environments.
ANGLE MEASUREMENT
Hz and V accuracy Absolute, continuous, diametrical 1 '' / 2 '' / 3 '' / 5 '' / 7 ''
- Display resolution: 0.1 '' (0.1 mg) ✔
- 4 axis compensation
- Compensator setting precision: 0.5 '' / 1 '' / 1.5 '' / 2 ''
- Compensator range: +/- 3.78 '(+/- 0.07 gon)
- Electronic level resolution: 2 ''
- Sensitivity of the spherical level: 6 '/ 2 mm

DISTANCE MEASUREMENT
Scope - Prism (GPR1, GPH1P): 1.5 m to 3.500 m ✔
- GPR1 prism (long range mode)> 10,000 m
Without prism / Any surface
- R500 ✔
- R1000 ✗ •
Accuracy / measurement time Single prism ✔
- + Accurate / once: 1 mm + 1.5 ppm (usually 2.4 s)
- Accurate and fast / once and fast: 2 mm + 1.5 ppm (usually 2 s)
- Tracking / continuous: 3 mm + 1.5 ppm (usually 0.15 s)
- Moye-e: 1 mm + 1.5 ppm
- Long range mode /> 4 km: 5 mm + 2 ppm (usually 2.5 s)
Without prism / Any surface ✔
- 0 m to 500 m: 2 mm + 2 ppm (usually 3 to 6 s)
-> 500 m: 4 mm + 2 ppm (usually 3 to 6 s)
Laser point size - At 30 m: 7 mm x 10 mm ✔
- At 50 m: 8 mm x 20 mm
- At 100 m: 16 mm x 25 mm
Glasses - Magnification: 30x ✔
- Resolution: 3 ''
- Focus range: 1.55m / 5.08ft to infinity
- Field of view: 1 ° 30 '/ 1.66 gon / 2.7 m at 100 m
GENERAL Data
Display and keyboard 3.5 inch,
QVGA 320 x 240 pixels,
color, touch,
28 keys
2nd keyboard
Illuminated keys ✔
Piloting - Worm gear controls for HZ and V
- Trigger key: user definable with 2 functions ✔
Power management Interchangeable Li-Ion battery
- Running time with GEB361 until 30 h
- Running time with GEB331 until 3 p.m.
Battery charging time with
- Charger GKL341 for GEB361 / GEB331 3 h 30 min / 3 h
- GKL311 charger for GEB361 / GEB331 6 h 30 min / 3 h 30 min
External supply voltage
- Nominal voltage 13.0 V DC and 16 W max ✔
Data storage - Internal memory: Flash 2 GB ✔
- Memory card: SD card 1 GB or 8 GB
- USB key: 1 GB
Processor - TI OMAP4430 1 GHz Dual-core ARM® Cortex ™ A9 MPCore ™ ✔
- Operating system: Windows EC7
Interfaces RS232, USB device ✔
Bluetooth®, WLAN ✔
Mobile data side panel: LTE modem for Internet access •
Alignment aid (EGL) - Working range: 5 m to 150 m
- Position accuracy: 5 cm at 100 m
- Red / orange wavelength: 617 nm / 593 nm (R1000) Laser plummet (class 2 laser) Precision ✔
- Vertical deviation: 1.5 mm to 1.5 m
- Laser point diameter: 2.5 mm to 1.5 m
AutoHeight module for automatic instrument height measurement (class 2 laser) Precision •
- Distance accuracy: 1.0 mm (1 sigma)
- Distance range: 0.7m to 2.7m
Weight 4.3 kg 4.3 to 4.5 kg
Environmental specifications
- Operating temperature range: -20 ° C to +50 ° C ✔
- Arctic version: -35 ° C to +50 ° C •
- Dust / water (IEC 60529) / humidity: IP66 / 95%, non-condensing ✔
- Military standard 810G, method 506.5 ✔
Caption:
1. 1 '' (0.3 mgon), 2 '' (0.6 mgon), 3 '' (1 mgon), 5 '' (1.5 mgon), 7 '' (2 mgon)
2. Angular precision / Compensator adjustment precision:
1 '' / 0.5 '' (0.2 mgon),
2 '' / 0.5 '' (0.2 mgon),
3 '' / 1.0 '' (0.3 mgon),
5 '' / 1.5 '' (0.5 mgon),
7 '' / 2.0 '' (0.7 mgon)
3.R500: Kodak gray 90% reflective (1.5m to> 500m), Kodak gray 18% reflective (1.5m to> 200m)
4.R1000: Kodak gray 90% reflective (1.5m to> 1000m), Kodak gray 18% reflective (1.5m to> 500m)
5. (a) position I standard, (b) position I standard, position II optional, (c) position I optional, position II optional
6. Angle / distance measurement every 30 seconds
7. 5 pin LEMO-0 for power, communication and data transfer
8. For communication and data transfer
9. For internet access, communication and data transfer, WLAN range can be up to 200m
10. Storage temperature: -40 ° C to +70 ° C

Note: Configuration depends on Customers Preference or Basic Package Based on availability
